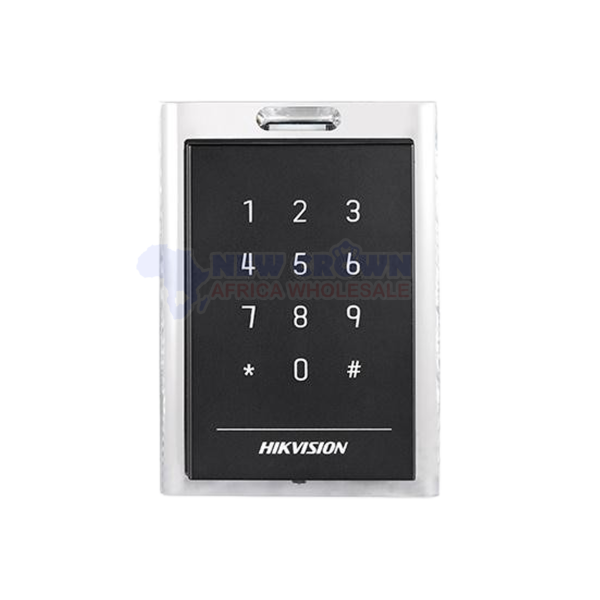

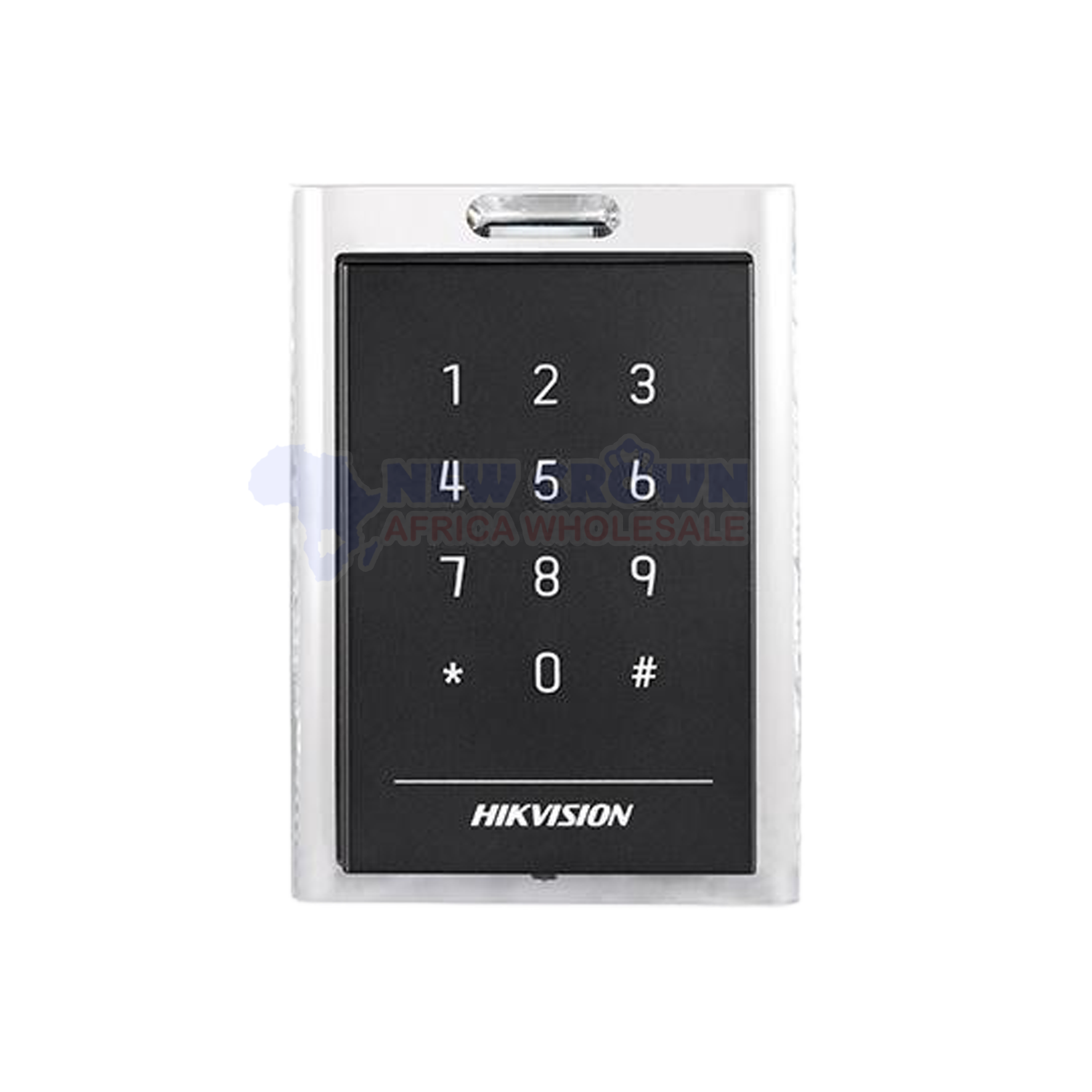

Pro 1101 Series Card Reader – MODEL DS-K1101MK

Authentication

• Card reading frequency13.56MHz

General

• Power supply12V DC, ≤ 500 mA
• Power consumption≤ 2 W
• Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
• Working humidity10% to 90% (no condensing)
• Dimensions132.0 mm × 92.3 mm × 20.5 mm (5.20” × 3.63” × 0.81″)
• Installation壁装吗？Applied for 120 Gang Box Only
• Weight≤ 0.14 kg (0.3 lb)
• Keypad

  DS-K1101M: No keypad

  DS-K1101MK: 12 keys (0 to 9, *, #)

• Buzzersupport

Function

• ID settingsvia DIP Switch
